ASME Bladder Tanks, Storage Tanks & Pressure Vessels

ASME Plain Steel Hydropneumatic Tanks

AAtanks ASME-code plain steel type hydropneumatic tanks are custom built to fit any application. The non-bladder hydropneumatic tank is typically designed to be used in conjunction with an air compressor or air feed line.

Plain Steel Custom Hydropneumatic Tanks:

Plain Steel / Custom Hydropneumatic tanks are non-bladder type typically built in carbon or stainless steel. There are several functions that a custom hydropneumatic tank can perform. In a booster pump application, it can provide water to the system during periods of a no flow shut down of the booster pump or it can provide water to replace leak loads. In well water applications it can provide the desired volume of water required between the pump shut down pressure and pump start up pressure.

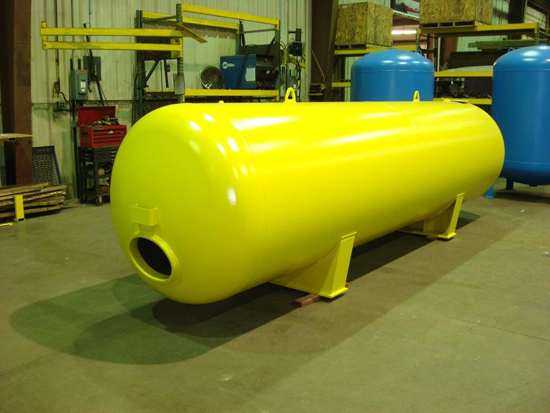

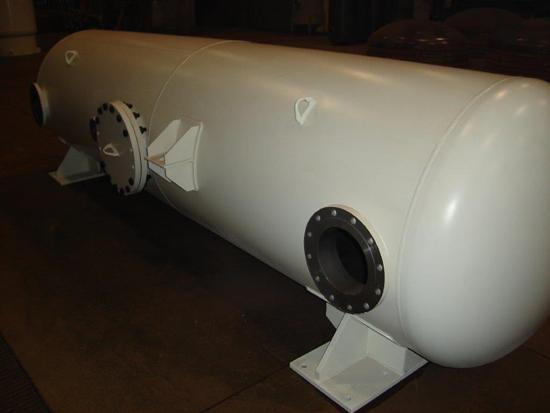

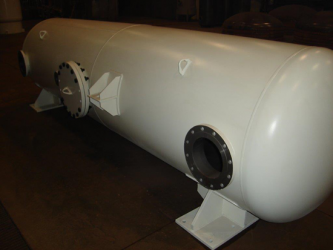

Plain Steel Custom Hydropneumatic Tanks

Download Plain Steel Custom Horizontal Tank Submittal Form [.pdf]
Download Plain Steel Custom Vertical Tank Submittal Form [.pdf]
Download Typical Plain Steel Tank Sizes [.pdf]

Construction:

  • ASME or non-ASME Construction
  • Material: Carbon Steel or Stainless Steel (304/316)
  • Design Pressure: From Full Vacuum up to 2000 PSI
  • Design Temperatures: From -50F to 450F
  • Interior and Exterior Epoxy Finish Available to Fit All Specifications
  • Custom Built to Fit Your Specifications
  • CE/PED, CRN and Many Other Certifications Available
  • Seismic and Wind Load Calculations Available
