Heat Exchangers

AAtanks offers three heat exchanger designs: Plate and Frame, Brazed Plate and Shell and Tube. Flow rates range from 30-10,000 gallons per minute. Heat exchangers are manufactured to efficiently transfer heat between two fluids (gas or liquid) while keeping them separate. In typical HVAC installations, steam or hot water primary loops distribute heat from a central energy source out to secondary loops. Heat exchangers transfer heat from a system’s primary and secondary loops and can also serve as a separation device to reduce system costs. Applications include domestic water heating, radiant heating, district heating, pool heating, condensate cooling, air conditioning, snow melting, and more.

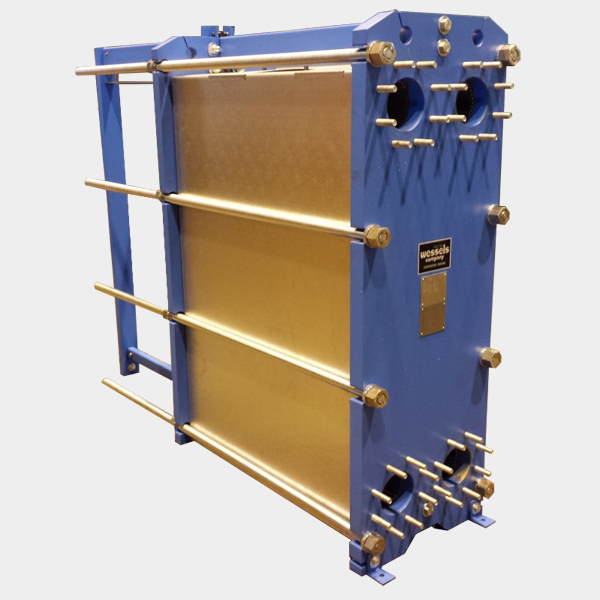

WP Plate and Frame Heat Exchanger:

AAtanks WP Heat Exchanger consists of an ASME certified frame and AHRI certified construction that contains a series of corrugated stainless steel plates designed to maximize turbulence and heat transfer. Gaskets are fixed between the plates to contain two separate fluids that flow alternatively to produce the highest rate of heat transfer.

WP Plate and Frame Heat Exchanger

Download WP Plate and Frame Heat Exchanger Submittal Form

WPDW Double Wall Plate and Frame Heat Exchanger

Download WPDW Double Wall Plate and Frame Heat Exchanger Submittal Form

Construction:

  • ASME Construction
  • CRN & AHRI certified
  • Plate Material: 304 Stainless Steel (Optional 316 SS)
  • Head Material: Carbon Steel (Optional Stainless Steel)
  • Connection Material: Carbon Steel (Optional Stainless Steel)
  • Gaskets: Nitrile (Optional EPDM)
  • Standard Design Pressure: 150 PSI (300 PSI Available)
  • Standard Max. Design Temperatures: 230F (320F Available)
  • Higher Pressures and Temperatures Available

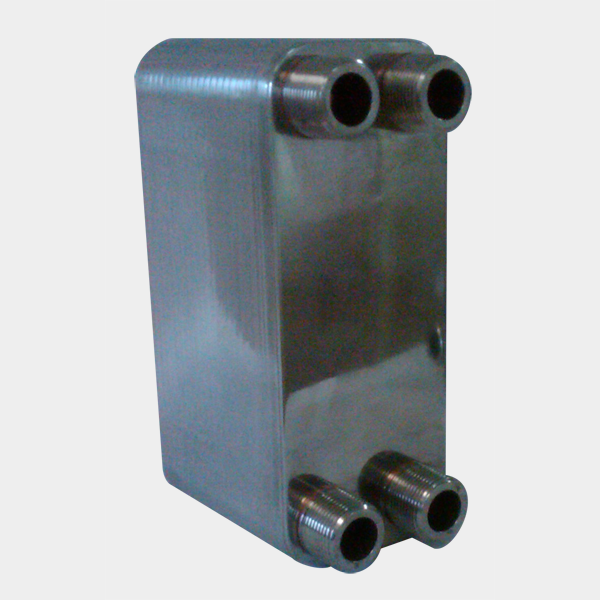

WB Brazed Plate Heat Exchanger:

AAtanks WB Brazed Plate Heat Exchanger is designed to deliver premium performance. Specially constructed heat transfer plates feature a corrugated channeling system that maximizes heat transfer. Hot and cold fluids flow along counter-current paths on either side of the plates resulting in low temperature approaches and the highest heat recovery of any heat exchanger design. The plates are bonded together with brazing material to produce an incredibly strong pressure vessel.

WB Brazed Plate Heat Exchanger

NOT YET AVAILABLE: [Download WB Heat Exchanger Submittal Form [.pdf]]

Construction:

  • ASME Construction
  • CRN & AHRI certified
  • Plate Material: 316 Stainless Steel
  • Connection Material: 316 Stainless Steel
  • Brazing Materials: Copper, Nickel
  • Flow rates between 30-383 GPM

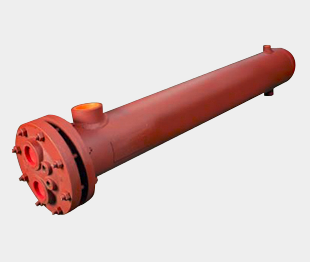

WST & WWT Shell and Tube Heat Exchanger:

AAtanks WST & WWT Heat Exchangers consists of two sides for two different media. The Tube Side media flows inside the tubes and is diverted by the heat exchanger head located on the end into two or four passes or circuits. The Shell Side fluid flows on the outside of the tubes and is contained by the shell where it is diverted by baffles or tube supports that also carry the weight of the tubes. The heat exchanger can separate two systems that have very different operating pressures, operating fluids (i.e. glycols, potable water, etc.), operating temperatures and cleanliness issues. WST heat exchangers are designed to house steam in the shell. WWT heat exchangers are designed to house boiler water in the shell.

WST Shell and Tube Heat Exchanger

NOT YET AVAILABLE: [Download WST Shell and Tube Heat Exchanger Submittal Form [.pdf]]

WWT Shell and Tube Heat Exchanger

NOT YET AVAILABLE: [Download WWT Shell and Tube Heat Exchanger Submittal Form [.pdf]]

WSD/WDD Double Wall Shell and Tube Heat Exchanger

NOT YET AVAILABLE: [Download WSD/WDD Double Wall Shell and Tube Heat Exchanger Submittal Form [.pdf]]

Construction:

  • ASME Construction
  • CRN
  • Tube Material: Copper (Optional Stainless Steel, 90/10 Cu Ni)
  • Shell Material: Carbon Steel (Optional Stainless Steel)
  • Tubesheet Material: Carbon Steel (Optional Stainless Steel, Brass, 90/10 Cu Ni)
  • Head Material: Cast Iron (Optional Carbon Steel, Stainless Steel
  • Tube Side Standard Design Pressure: 125 PSI (150, 300, 400 PSI Available)
  • Tube Side Standard Max. Design Temperatures: 400F
  • Shell Side Standard Design Pressure: 150 PSI (300 PSI Available)
  • Shell Side Standard Max. Design Temperatures: 375F
