Non-ASME Hydropneumatic Tanks

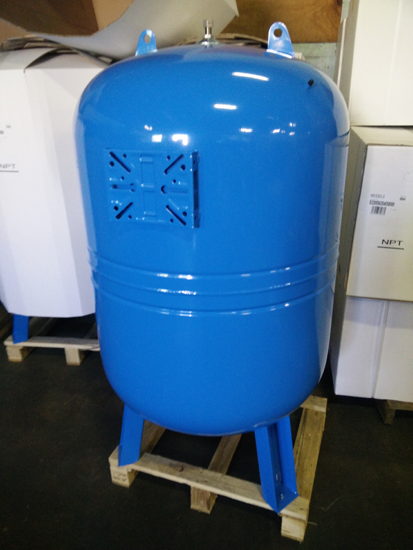

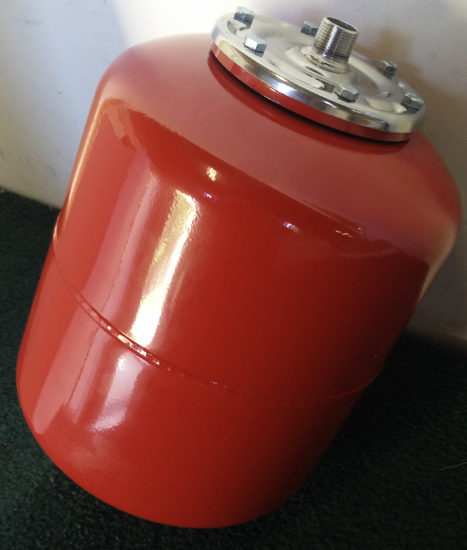

FX bladder style tanks are non-ASME code design. FX tanks will be smaller in size than the plain steel hydropneumatic tank design and thus require less floor space. The heavy-duty butyl rubber replaceable bladder is a barrier between the air and water which prevents water logging. The pre-charged hydropneumatic tank is virtually maintenance free. Sizes from 2 to 528 gallons. Standard design working pressure 150 PSI.

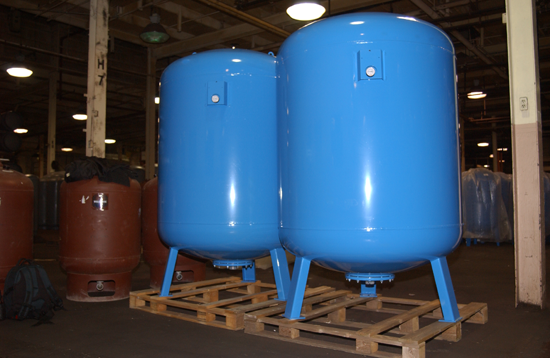

FX Hydropneumatic Tanks:

FX series hydropneumatic tanks are designed to accept water between two set pressures usually controlled by a pump switch in pressure booster, water well, shock and surge, as well as other commercial and industrial systems where water is to be stored in a corrosion protected reservoir.

FX Non-ASME Tanks

Download FX Non-ASME Tank Submittal Form [.pdf]

Construction:

  • non-ASME Construction
  • Material: Carbon Steel
  • System Connection: Stainless Steel
  • Bladder: Heavy Duty Butyl Rubber (NSF / FDA approved materials)
  • Factory Pre-charge: 30 PSI (field adjustable)
  • Standard Design Pressure: 150 PSI
  • Standard Design Temperatures: -20F to 200F
  • Standard Finish: Blue Powder Coat Exterior
