Bladder Hydro-Pneumatic Tanks - ASME

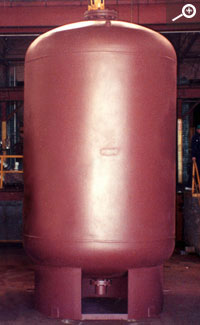

FXA bladder style hydro-pneumatic tanks are the ASME code design, will be smaller in size than the plain steel hydropneumatic tank design and thus require less floor space. The heavy duty butyl rubber replaceable bladder is a barrier between the air and water which prevents water logging. The pre-charged hydropneumatic tank is virtually maintenance free.

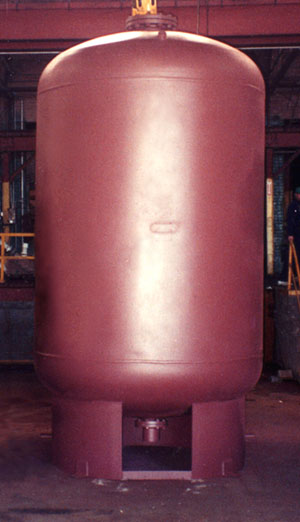

FXA Tanks are ASME replaceable bladder type pre-charged hydro-pneumatic tanks. The water is contained in a butyl bladder. Sizes from 10 to 3963 gallons. Standard design working pressure 125 PSI.

FXA Hydro-Pneumatic Tanks:

FXA Hydro-Pneumatic tanks are designed to accept water between two set pressures usually controlled by a pump switch in pressure booster, water well, shock and surge, as well as other commercial and industrial systems where water is to be stored in a corrosion protected reservoir.

FXA 35 - 800L Tanks
Download FXA 35 - 800L Tank Submittal Form [.pdf]
FXA 700 Tanks
Download FXA 700 Tank Submittal Form [.pdf}
FXA 1000 - 15000 Tanks
Download FXA 1000 - 15000 Tank Submittal Form [.pdf]
Construction:
  • Shell: Carbon Steel
  • Bladder: Heavy Duty Butyl Rubber (NSF Certified / FDA Approved Materials)
  • Finish: Standard Red Oxide Prime Painted
  • System Connection - Epoxy Coated Carbon Steel
  • Maximum Design Temperature: 240°F
  • Maximum Design Pressure: 125 PSI (200 PSI & 250 PSI models available)
  • Factory Pre-Charge: 30 PSI (Field Adjustable)
  • Custom Designs Available
  • Interior and Exterior Epoxy Finish Available Upon Request

FXT Hydro-Pneumatic Tanks:

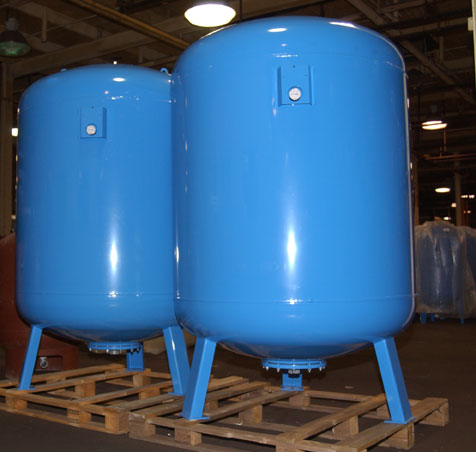

FXT series diaphragm tanks are designed to allow the systems air cushion to be separated from the systems water. They are designed to deliver water under pressure between pump cycles to provide sufficient flow to meet demands. The non-replaceable fixed diaphragm design provides a lower initial cost.

FXT Hydro-Pneumatic Tanks
Download our FXT Hydro-Pneumatic Tanks Submittal Form [.pdf]
Construction:
  • Shell: Carbon Steel
  • Bladder: Butyl Rubber (NSF Certified / FDA Approved Materials)
  • Finish: Standard Red Oxide Prime Painted
  • System Connection - Epoxy Coated Carbon Steel
  • Maximum Design Temperature: 240°F
  • Maximum Design Pressure: 200 PSI
  • Factory Pre-Charge: 30 PSI (Field Adjustable)

Plain Steel Custom Hydro-Pneumatic Tanks:

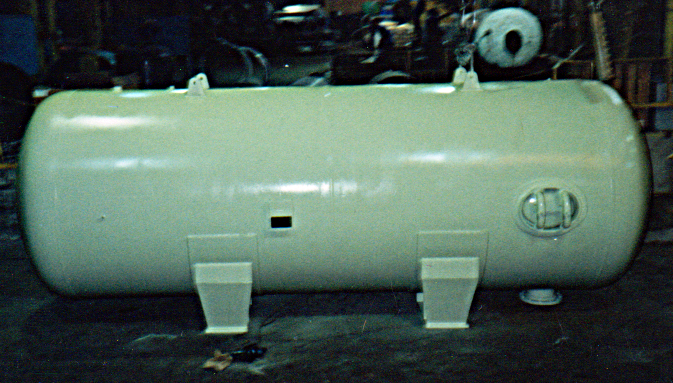

Plain Steel - Custom Hydro-Pneumatic tanks are the non-bladder type built in carbon steel. There are several functions that a custom hydro-pneumatic tank can perform. In a booster pump application, it can provide water to the system during periods of a no flow shut down of the booster pump or it can provide water to replace leak loads. In a well water application, it can provide the desired volume of water required between the pump shut down pressure and the pump turn on pressure.

Plain Steel Custom Hydro-Pneumatic Tanks
Download our Plain Steel Custom Horizontal Hydro-Pneumatic Tanks Submittal Form [.pdf]
Download our Plain Steel Custom Vertical Hydro-Pneumatic Tanks Submittal Form [.pdf]
Construction:
  • Shell: Carbon Steel
  • Custom Built For Your Needs
  • Vertical or Horizontal
  • Wide Range of Design Temperatures
  • Wide Range of Working Pressures Available
  • Wide Range of Epoxy Linings Available
  • ASME Construction
  • CE and CRN certification available
